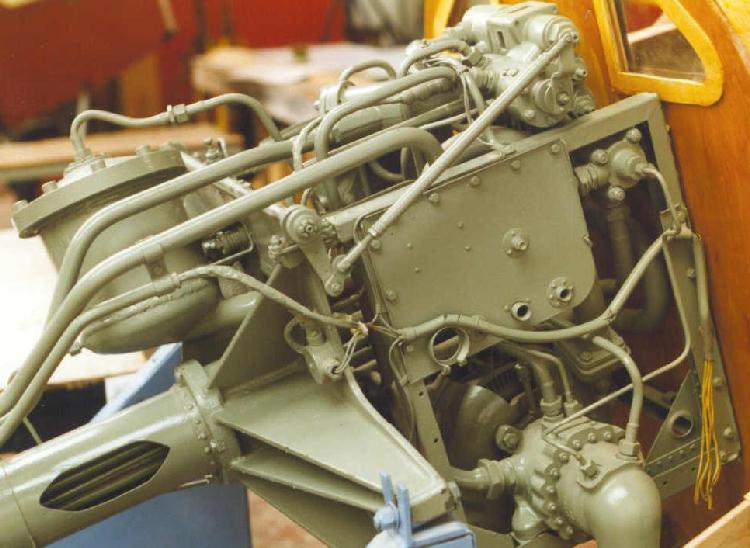

Showing the basic starboard side of the motor, Eddie Longcroft's ongoing work is visible in the background.

Starboard Side

In this view of the starboard side of the motor, one can make out the four rivets which should secure the manufacturer's plate - missing on this motor. Also, the sectioned pump can just be seen, and a piece has been removed from the thrust tube, showing C-Stoff/T-Stoff fuel pipes leading to the combustion chamber.

Photographs © Shamus Reddin - with thanks to the Staff of the Shuttleworth Collection
